Eventuri Carbon Fibre Intake System – VW Golf MK 8 R

£1,399.20

  • Please note: This product will ship directly from the manufacturer. Lead times may vary, please contact us for more information on exact timings.

NOT CURRENTLY COMPATIBLE WITH AUDI S3 8Y



Performance Gain (Stock Golf R): 10-13hp, 12-15Nm
Performance Gain (Tuned Golf R): 15-20hp, 25-30Nm

Fitment: MK8 Golf R, Gti (2 Separate Part Numbers), Other 2.0 TFSi Gen 4 platforms

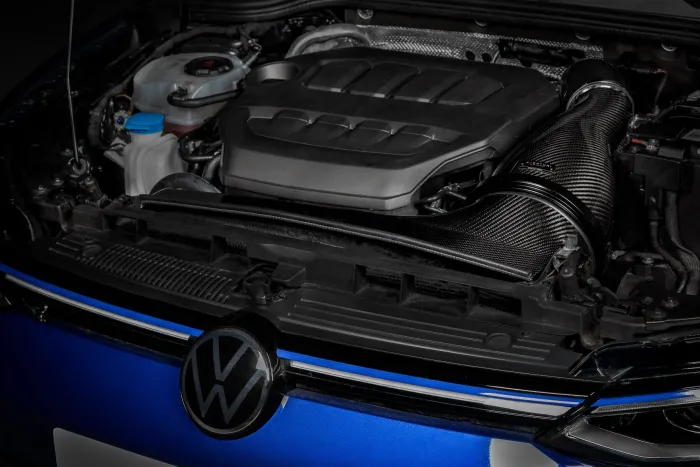

The MK8 Golf GTi/R intake is a complete redesign of the stock intake all the way to the turbo inlet. Taking cues from our RS3 intake, we have maximised usage of the available space to create an intake which can cater for all power levels from stock to high power builds with hybrid or full frame turbos. This intake system has been developed to offer the highest possible flow rate whilst maintaining the lowest intake temperatures possible. Each component has been designed to provide the turbo with a smooth and free flowing path. The restrictive stock 73mm diameter inlet tube is replaced with a larger 94mm diameter tube intake tube. The filter itself has an outer diameter of 192mm or 7.5″ with a filtration surface area of over 110,000mm^2. The patented Venturi housing has been designed to provide the maximum internal volume possible for the Golf engine bay space available and provides laminar flow to the turbo tube. Finally the duct seals the filter opening to the front slam panel but is not restricted by just the stock entry feed. We have lifted the front of the duct to now provide an extra opening behind the hood which is equivalent to an extra 7″ diameter hole for the intake to draw from. The resulting system can significantly outflow the stock airbox while keeping intake temperatures at a minimum with the sealed design.

The Eventuri Difference

The 2.0 TFSi Generation 4 Eventuri system uses our Patented Carbon fiber Housings which provide an aerodynamically efficient airflow path from the filter to the turbo tubing. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.

The Eventuri MK8 Golf R/Gti intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

Each intake system consists of:

  • Carbon Fiber Patented Venturi Filter Housing with 94mm Outlet
  • Bespoke High Flow Dry Cone Filter
  • Carbon Fiber Inlet Duct – Full Width
  • Silicon tube with 94mm inlet diameter
  • Machined breather adapter (Golf R only)
  • Secondary Breather Filter and Bracket (USA spec Golf GTi)
  • Laser Cut Stainless Steel Brackets
