Eventuri Carbon Fibre Intake System – BMW 3 Series E90 | E92 | E93 M3 – Gloss Finish
£870.00
-
Please note: This product will ship directly from the manufacturer. Lead times may vary, please contact us for more information on exact timings.
Performance Gain Dyno: 8-10hp, 10-12ft-lb
Performance Gain Road Dyno (Insoric): 16hp, 14Nm
IAT Difference with Ambient: Stock 7.5C : Eventuri 4.5C
V-Box Acceleration : 100-200kph Reduced By 0.3 Seconds

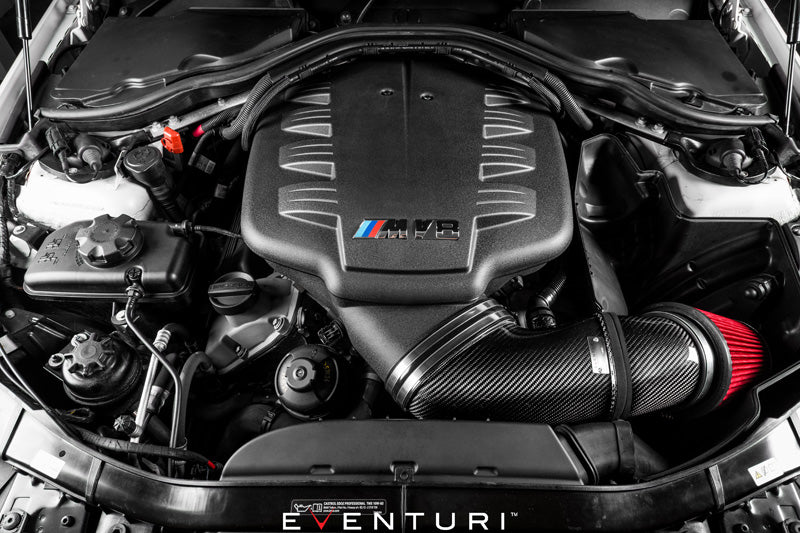

The BMW E90 | E92 | E93 M3 Eventuri intake system is the result of extensive research and optimisation which improves possibly one of the best designed stock intake systems we have seen.
The E9X stock airbox system is a brilliantly designed intake with an excellent flow path and feed system for ambient air. However on closer inspection, there are restrictions in the inlet tube connecting the airbox to the inlet manifold. By redesigning the tube yet maintaining the airbox, we have been able to allow the V8 engine to breathe with greater efficiency and therefore gain power.
In addition to the new tube design, we also identified a further restriction in the air feed system. To overcome this, we designed a scoop to allow an increase in airflow through the airbox. This reduces inlet temperature values further and adds to the performance gain of the system.
Performance Gain Dyno: 8-10hp, 10-12ft-lb
Dyno tests were carried out showing a consistent gain of approximately 9hp and 11ft-lb of torque. The gain is not just at the peak but throughout the RPM range. This translates on the road to increased part throttle and full throttle response with the car pulling much more eagerly to the redline. The testing was done on the same day back-to-back and temperatures were monitored to ensure consistency. The car was tested firstly with the stock intake – hood closed. We then left the car on the dyno and installed the Eventuri. The car was then run again – hood closed. Several runs were carried out with both configurations to get a consistent result.
Performance Gain Road Dyno (Insoric): 16hp, 14Nm
The system was also tested using a road based measurement device (Insoric). On the road, the airflow is a lot better than the fan can achieve on the dyno and so the intake system is able to perform better. The following graph shows the difference the Eventuri intake makes on the road compared with the stock airbox. The measured gains were 16Hp and 14Nm : Solid lines show with the Eventuri and dashed lines are with stock airbox. Red line is power at the crank and blue line is at the wheels.
