powerflex poweralign camber bolt kit (14mm) - PFA100-14

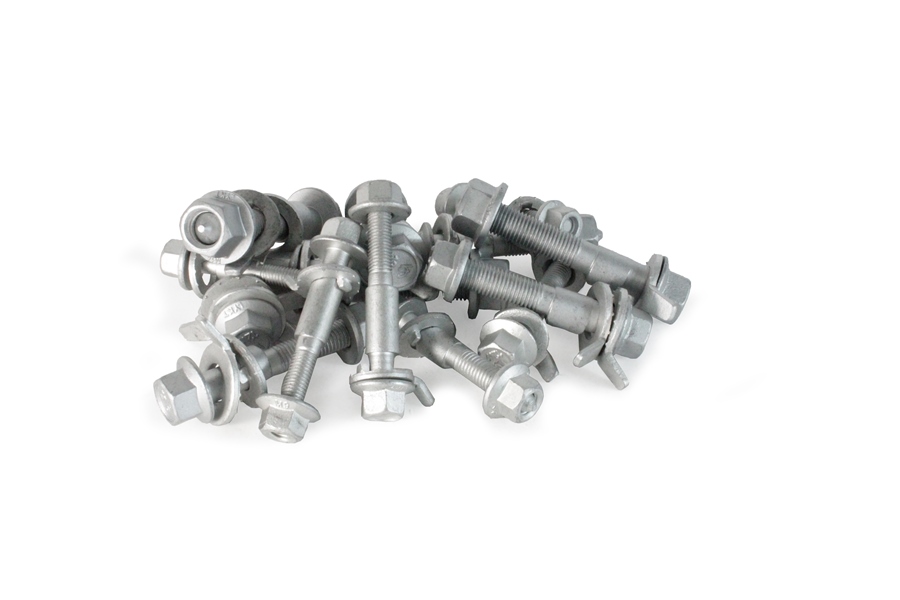

A pile of silver bolts with accompanying nuts and washers lies scattered on a plain, white surface.
A table lists specifications for fasteners: suitable hole size, thread size, shaft length, lobe diameter, and maximum torque settings. Above the table, there's a side view diagram of a fastener with labeled parts: “Large Tab,” “Tab washer,” “Small tab,” and “Lobe.” Text from the table: - Model: PFA100-10, Hole Size: 10, Thread Size: M8 x 1.25, Shaft Length: 70, Lobe Diameter: 10, Max Torque: 31 lb-ft / 42 Nm - Model: PFA100-12-70, Hole Size: 12, Thread Size: M9 x 1.25, Shaft Length: 70, Lobe Diameter: 11.9, Max Torque: 46 lb-ft / 63 Nm - Model: PFA100-12, Hole Size: 12, Thread Size: M10 x 1.5, Shaft Length: 60, Lobe Diameter: 11.9, Max Torque: 62 lb-ft / 84 Nm - Model: PFA100-14, Hole Size: 14, Thread Size: M11 x 1.5, Shaft Length: 70, Lobe Diameter: 14, Max Torque: 85 lb-ft / 115 Nm - Model: PFA100-15, Hole Size: 15, Thread Size: M12 x 1.

Powerflex PowerAlign Camber Bolt Kit (14mm) for Transporter T5

£28.44

Categories:

For Transporter T5
